Specail Features
|
|
1. It use brand new 32 inch LED-backlit screen , supports Dat, Mpg, mpeg，ts, trp, tp, m2ts, vob,mp4, rm, rmvb, mkv, divx, avi, Motion JPEG, asf, wmv, ts 1080P@30P video (more see chart below).
2. It builts in Digital Power Timer, allowing itself to go on or off 5 different times every day, every "Monday-Friday", every "Sat-Sunday" of the week, every several days, or several times per day! It will be automatically on/off after the time interval you pre-set, helping you to use energy more wisely and control your display more easily.
3. Scheduled-Playing : Play designated files (video/music/rolling text/ slideshow) at given times. (256 schedules max, The free Playlist tool is required to creat scheduled tasks with your computer )
For example:
You can create 3 schedules on Monday and 4 schedules on Friuday.
Monday:
1). 7:00am - 9 :30am Slide Picture1 ~Picture 50 w/ background music 1-5
2). 10:30am – 12:00pm to Play video1 ~ video 10 and slide Pic51 ~ Pic100 and also spot announcement 1
3). 12:00pm - 3:00pm Auto power off @ 12:01pm and Auto power on 3:00pm by using Power Timer (see 2 for Power Timer features)
4). 3:00pm - 6:00pm to display video11 and rolling text 2 (see 12 for rolling text feature)
Friday:
1). 7:00am Auto power on by using Power Timer
2). 7:00am – 5:00pm Play video10 ~ video20 and slide Pic100 ~ Pic200 with background mp3 music 6-10
3). 5:00pm - 9:00pm Display specail offer
4). 10:00pm - 9:00am Scheduling power off and on again
4. Slideshow effects and interval time of each slide are adjustable.( Photo interval time 5s/7s/10s/15s/30s/60s/90s/120s/150s adjustable.)
5. Caption function: Add/Display 3 scrolling texts on the top/bottom of screen during playing.
6. Spot announcement: Interrupt the current show with "breaking video news" during or after a playing.
7. Power failure memory; Auto play the position that it last stopped. .
8. USB update function.Update playlist/files simply by inserting USB flash driver.
9. Auto copy and update playlist.
10. Super thin aluminum alloy housing with toughened glass,protect the screen well.
11. Security door & lock, prevent your content/USB drive from unauthorized access.
12. Intuitive menu is very easy to use, it's also Password protected.
13. Mp3 lyric display.
|
| Live show |
| |
|
Aluminum alloy housing | Oval frame gold finish | Tempered glass
|
| |
|

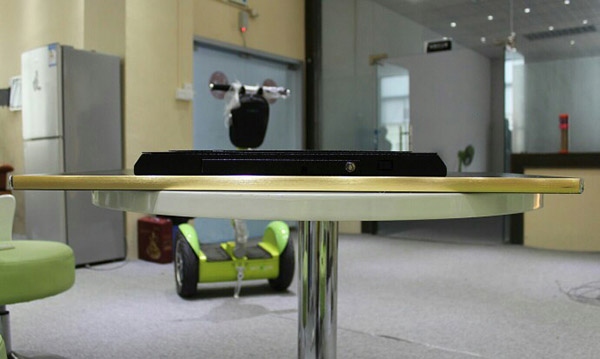

The side
|
 |
| ADF32HDs (ADF32HD in silver) |
| |
 |
| You can install it both vertically and horizontally. |
| |
 |
| |
 |

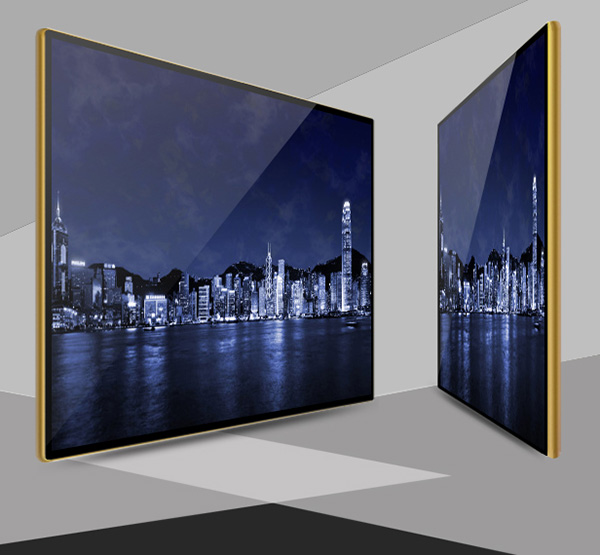

| ADF32HDg (ADF32HD in gold) |
| |
| Video format support |
| |
| Video Extension |
Video Format |
Coding Type |
Video/Resolution |
Stream Rate |
| .Dat, .Mpg .Mpeg |
Mpg, Mpeg |
Mpeg1/Mpeg2 |
1920*1080@30p |
20Mbit/sec |
| .ts, .trp, .tp, .m2ts |
Mpeg2 -TS
H264-TS |
MPEG2 ,H.264 |
1920*1080@30p |
20Mbit/sec |
| .vob |
MPEG2 -PS |
MPEG2 |
1920*1080@30p |
20Mbit/sec |
| .mp4 |
AVI, MP4 |
MPEG4
Divx3.11,Divx 4.12, Divx5.x,Divx6, 1.00,
Xvid1.01,Xvid 1.02, Xvid1.03,
Xvid1.10-beta1/2
H.264, xvid |
1920*1080@30p |
20Mbit/sec |
| .rm, .rmvb |
RM, RMVB |
Rm |
1920*1080@25p |
10Mbit/sec |
| .mkv |
MKV |
H.264, MPEG1,2,4 |
1920*1080@30p |
20Mbit/sec |
| .divx, .avi |
AVI(1.0, 2.0),
DMF0,1,2
|
MPEG2, MPEG4
Divx3.11,Divx4.
Divx5, Divx 6,
Xvid 1.00,
Xvid1.01,Xvid 1.02, Xvid1.03,
Xvid 1.10-beta1/2
H.264 |
1920*1080@30p |
20Mbit/sec |
| .asf, .wmv |
ASF
(Revision 01.20.03) |
VC1 |
1920*1080@30p |
20Mbit/sec |
| .ts |
ts |
AVS |
1920*1080@30p |
20Mbit/sec |
| Motion JPEG |
AVI, MOV |
JPEG |
640x480 @ 30P |
10Mbit/sec |
|
| Timer: Auto power on/off and play designated files |
 |
| Playlist allow playing designated files at designate time (256 groups max) |
 |
| |
| Auto copy/update |
 |
|
More Features
|
|
1. 16:9 Full HD 1080p (1920x1080) video playing, able to play Dat, Mpg, mpeg，ts, trp, tp, m2ts, vob,mp4, rm, rmvb, mkv, divx, avi, Motion JPEG, asf, wmv, ts 1080P@30P video (more see chart1).
2. Manage and update the content through USB flahs driver.
3. Timer function: Auto power on/off play designated files on schedule, 5 groups timers available.
4. Playlist feature: Play designated files at designated times. (256 groups max)
5. Slideshow with background music.( Photo interval time 5s/7s/10s/15s/30s/60s/90s/120s/150s adjustable.)
6. Caption function: Add 3 scrolling text on the top/bottom of screen during playing.
7. Spot announcement: Spot announcement during or after a playing, (9 max).
7. Power failure memory; Mp3 lyric display.
8. USB update function.Update playlist/files simply by inserting USB flash driver.
9. Auto copy and update playlist.
10. Metal case with security locker.
|
|
Frame Specification
|
|
Viewing Area
|
32 inch (diagonal) 697 ×392 (mm)
|
|
Screen Resolution
|
1920*1080 or 1366*768 (please tick the right version above to order.)
|
| Frame Dimension |
840*520*75 (mm) |
|
Aspect Ratio
|
16:9
|
| Contrast Ratio |
2000:1 |
| Brightness |
450 nits (cd/m2) |
| Timer Funtion |
YES, power on/off at given time. |
|
Viewing Anlge
|
170° horizontal/vertical
|
| Play log |
Yes |
|
Memory Cards
|
USB drive
|
|
Image Format
|
JPEG/JPG/PNG
|
|
Video Formats
|
Dat, Mpg, mpeg，ts, trp, tp, m2ts, vob,mp4, rm, rmvb, mkv, divx, avi, Motion JPEG, asf, wmv, ts, tp, trp, t2rs, divx 1080P@30P
|
|
Audio Formats
|
MP3
|
| File quantity |
Appox 200 |
| Boot (play) Mode |
- All
- Photo only
- Music only
- Photo+ Mp3
- Movie
- Playlist
|
|
No device off
|
Yes, on/off
|
|
Rotation
|
90/180/270 (Captions/timt/calendar rotatble)
|
|
Marquee (Colors)
|
On/off; Blue, Purple, Yellow, White, Red, Green
|
| Random Playback |
No |
| Play order |
In numberic & alphabetic & predefined order Playlist order, e.g. 1-->1a-->1b....-->1z-->2--->2a..... |
| Repeat Mode |
Repeat one/Repeat all/Repeat none |
|
Photo Inteval time
|
5s/7s/10s/15s/30s/60s/90s/120s/150s
|
| Photo Slide Mode |
Normal, Radom, Left->Right, Right->Left, Top->Bottom, Bottom->Top, Top Left, Top Right, Bottom Left, Bottom Right, Hori Center,Hori Side, Vert Center, Vert Side, Hori Top, Hori Bottom, Vert Left, Vert Right, |
|
Speaker
|
2
|
|
Wall mount (Bracket)
|
Yes
|
|
Input voltage
|
100-250V (US/UK/AU/EU)
|
|
Language
|
English, Chinese
|
|
Packing Weight
|
20KGS/45lbs
|
| Packing Dimension |
1020mm*210mm*590mm |
|
Warranty
|
12 months by Manufacturer
|
|
Contents of Package
|
- 32 inch advertising player
- Wall bracket (1)
- Operations Manual
- A/C Adapter(100V~250V) built-in
- Remote Control
- Transport Wood case to protect the frame from transit damage.
|
| Specification (PDF) |
Please click here to download 32 inch HD adverising digital frame specification |
