Specail Features
|
|
1. It use brand new 22" LED-backlit screen with a resolution of 1920*1080 pix , suppoty Dat, Mpg, mpeg，ts, trp, tp, m2ts, vob,mp4, rm, rmvb, mkv, divx, avi, Motion JPEG, asf, wmv, ts 1080P@30P video (more see chart below).
2. It builts in Digital Power Timer to go on or off 5 different times every day, every "Mon-Fri", every "Sat-Sundy" of the week, every several days, or several times per day! It will be automatically on/off after the time interval you select, helping you to use energy more wisely and control your display more easily.
3. Schedule playback : Schedule the playback at given time.

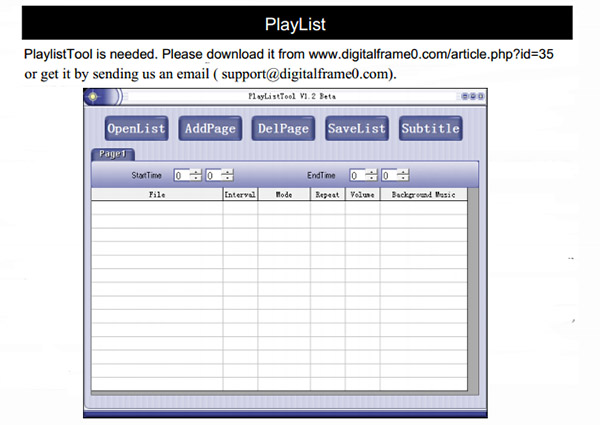

This feature requires The Playlist tool to creat scheduled tasks with your computer, .
For example:
You can create 3 schedules on Monday and 4 schedules on Tues.
Monday:
1). 8:00am - 10:30am Slide show Pic1 ~ Pic 100 and rolling text 1
2). 10:30am – 2:00pm to Play video1 and slide Pic101 ~ Pic150 and mp3
3). 2:00pm - 3:00pm Auto power off @ 2:01pm and Auto power on 3:00pm by using Power Timer
4). 3:00pm - 5:00pm to display video2 and rolling text 2
Tuesday:
1). 9:00am Auto power on by using Power Timer
2). 9:00am – 5:00pm Play video3 and slide Pic151 ~ Pic200 with background mp3 2
3). 5:00pm - 10:00pm Display specail offer
4). 10:00pm - 9:00am Auto power off and on again
4. Slideshow effects and interval time of each slide adjustable.( Photo interval time 5s/7s/10s/15s/30s/60s/90s/120s/150s adjustable.)
5. Subtitles features : Add/Display scrolling texts on the top/bottom of screen during the playback.
6. Spot announcement: Spot announcement, insert breaking video news during or after a playing.
7. Power failure memory; Auto play the position that it last stopped. .
8. USB update function.Update media content and your schedules simply by inserting USB flash driver.
9. Auto copy and update playlist.
10. Metal case with security locker and auminum-finishing plastic border.
11. Mp3 lyric display
|
| Photography |
 |
| Metal housing + Oval frame silver finish + High transmission toughened glass |
 |
| |
 |
| |
 |
Floor Stand not include
|
| |
 |
| |
|

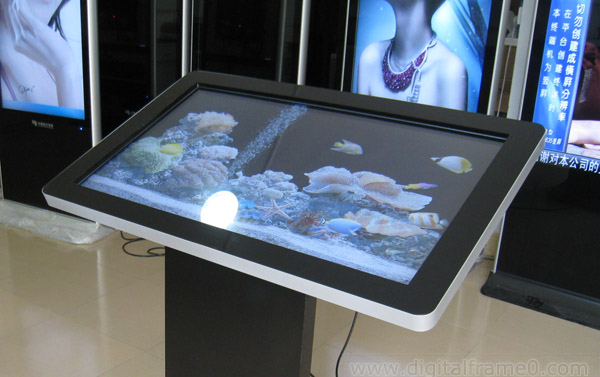

A few sames where it placed
|
| |
| Video format support |
| |
| Video Extension |
Video Format |
Coding Type |
Video Resolution |
Stream Rate |
| .Dat, .Mpg .Mpeg |
Mpg, Mpeg |
Mpeg1/Mpeg2 |
1920*1080@30p |
20Mbit/sec |
| .ts, .trp, .tp, .m2ts |
Mpeg2 -TS
H264-TS |
MPEG2 ,H.264 |
1920*1080@30p |
20Mbit/sec |
| .vob |
MPEG2 -PS |
MPEG2 |
1920*1080@30p |
20Mbit/sec |
| .mp4 |
AVI, MP4 |
MPEG4
Divx3.11,Divx 4.12, Divx5.x,Divx6, 1.00,
Xvid1.01,Xvid 1.02, Xvid1.03,
Xvid1.10-beta1/2
H.264, Xvid |
1920*1080@30p |
20Mbit/sec |
| .rm, .rmvb |
RM, RMVB |
Rm |
1920*1080@25p |
10Mbit/sec |
| .mkv |
MKV |
H.264, MPEG1,2,4 |
1920*1080@30p |
20Mbit/sec |
| .divx, .avi |
AVI(1.0, 2.0),
DMF0,1,2
|
MPEG2, MPEG4
Divx3.11,Divx4.
Divx5, Divx 6,
Xvid 1.00,
Xvid1.01,Xvid 1.02, Xvid1.03,
Xvid 1.10-beta1/2
H.264 |
1920*1080@30p |
20Mbit/sec |
| .asf, .wmv |
ASF
(Revision 01.20.03) |
VC1 |
1920*1080@30p |
20Mbit/sec |
| .ts |
ts |
AVS |
1920*1080@30p |
20Mbit/sec |
| Motion JPEG |
AVI, MOV |
JPEG |
640x480 @ 30P |
10Mbit/sec |
|
| Timer: Auto power on/off and play designated files |
 |
| Playlist allow playing designated files at designate time (256 groups max) |
 |
| |
| Auto copy/update |
 |
|
Frame Specification
|
|
Viewing Area
|
22 inch (diagonal) 476*268 (mm) / 19 inch 476*268 (mm)
|
|
Screen Resolution
|
22 inch (1920*1080) ;19 inch (1366 * 768)
|
| Frame Dimension |
22":535*3358*45 (mm) ; 19": 475*323*45(mm) |
|
Aspect Ratio
|
16:9
|
| Contrast Ratio |
1000:1 |
| Brightness |
350 nits (cd/㎡) |
| Schedule Playback |
YES |
|
Viewing Anlge
|
170° horizontal/vertical
|
| Response time |
4 ms |
|
Memory Cards support
|
USB Flash drive
|
|
Image Format
|
JPEG/JPG/PNG
|
|
Video Formats
|
Dat, Mpg, mpeg，ts, trp, tp, m2ts, vob,mp4, rm, rmvb, mkv, divx, avi, Motion JPEG, asf, wmv, ts, tp, trp, t2rs, divx 1080P@30P
|
|
Audio Formats
|
MP3, Wmv
|
| Files quantity |
appox 200 |
|
Auto Power On/Off
|
Yes
|
|
Rotation
|
90/180/270 (Captions/timt/calendar rotatble)
|
| Max file quantity |
Approx 200 in one time |
| Random Playback |
No |
| Playback order |
In numberic & alphabetic & predefined order Playlist order, e.g. 1-->1a-->1b....-->1z-->2--->2a..... |
|
Inteval time
|
5s/7s/10s/15s/30s/60s/90s/120s/150s
|
|
Remote Control
|
Yes
|
|
Speaker
|
2
|
|
Wall mount
|
Yes
|
|
Input voltage
|
100-250V (US/UK/AU/EU)
|
|
Language
|
English, Chinese
|
|
Packing Weight
|
12KGS/26lbs
|
| Packing Dimension |
64mm*430mm*130mm |
|
Warranty
|
12 months by Manufacturer
|
|
Contents of Package
|
- advertising player
- Wall bracket (1)
- Operations Manual
- A/C Adapter(100V~250V) built-in
- Remote Control
- Transport Wood case to protect the frame from transit damage.
|
