22 inch digital photo frame,advertising screen


22 inch digital photo frame,advertising screen


In stock

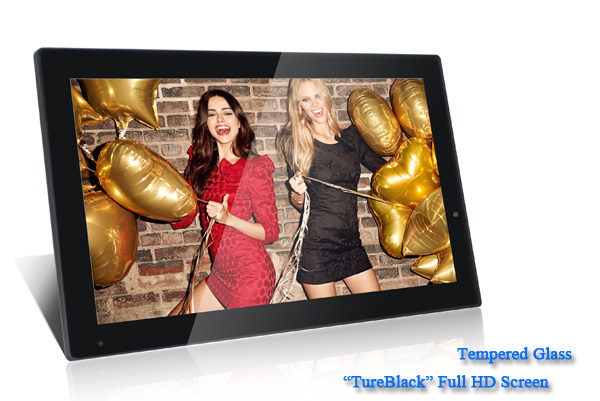

  • 22 inch (21.5″) Full HD “Trueblack screen”
  • HDMI/AV in
  • Timer slideshow/1080p video
  • Motion detection(Optional)
SKU: EO10038


22 inch (21.5″-Vis ) digital photo frame

21.5″ Full HD LED backlight. HDMI – IN A stylish and classy frame with over 10 patterns in the slideshow display mode

In addition to the standard landscape position,  it can be mounted on a wall,
using a VESA compliant mounting kit

The largest Motion Sensor frame on the market, automatically on while motion is detected.

Ship Regular version by defult, please tick “Motion detection version” above if you need motion activated version.



1. 22 inch (21.5″ actually)16:9 Full HD 1080p Resolution LED screen (1920×1080) ,
2. Support full hd 1080P  (1920×1080) H.264/Rmvb/Mpeg2/Mpeg4/Avi(mov/.ts/.mpg/.m2ts/.mkv) @30p max.
3. Auto copy.
4. Timer:  Auto power on/off.
5. Support up to 999 files max in one time.
6. Slideshow with background music.( Photo interval time and Slide Mode are both chageable.)
7. Plug and play.
8. E-book. Supports TXT file to read Your favorite Novel
9. SRS TruSurround HD & Bass Enhancer
10. HDMI & AV in
11.Anti-thief lock (For memory card/usb)
12.4 “VESA” & 4 regular holes for mounting to the wall or on a stand.
13.Optional Motion sensor to detects motion up to 2m @±30 degree (Please tick “Motion detection Version” box if need.)



DPF20HDa adopts 1080P LED screen and supports 1080P video

DPF20HDa has a native pixel resolution of the 1920×1080 and supports many1080P videos at 25+ frames per second, it delivers enough detail to viewers when they are at the viewing distance .

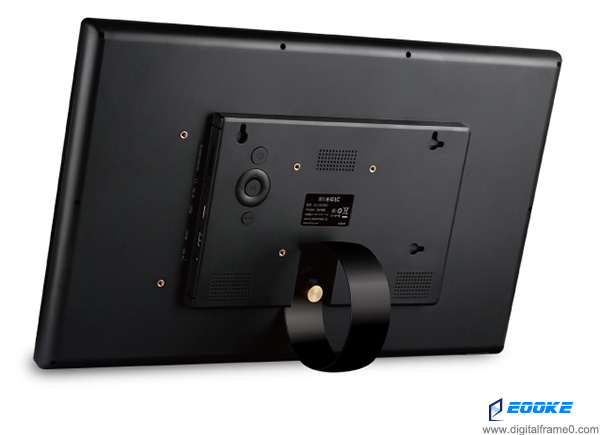

The backside

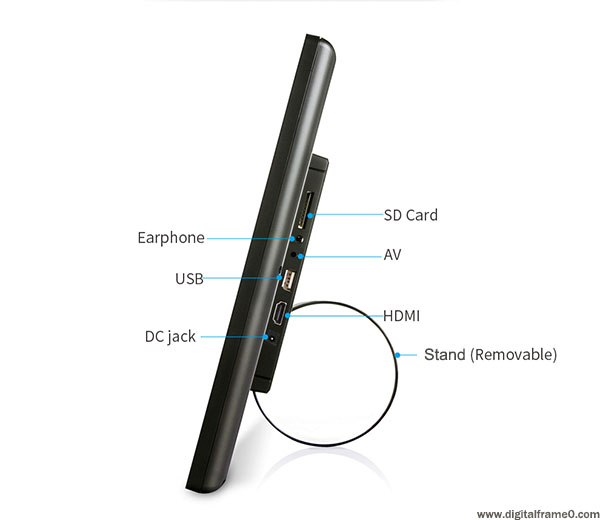

All in one side
Anti-Theft Cover

For wholesale order and custom digital frame (logo & Boot screen), please contact or comment below

Display panel 21.5″ (Diagonal ) Full HD “Trueblack” LED screen
Viewable area 474*265 mm (W*H)
Frame dimension 54*33*4 cm
HDMI/AV in Yes. HDMI1.3
Screen Resolution 1920*1080
Screen Ratio 16:9
Frame color Black
Processing Technology Tempered glass
Memory Cards MMC, MS, SD USB2.0
Motion Sensor (Optional ) 2m @±30 degree (pls tick “Motion Detection Version”box above if need.)
Image Support JPEG/JPG
Video Support 1080P Full HD : H.264,Rmvb,AVI(.avi/ mov,/ mpg,/ m2ts,/mkv),Mpeg4
Audio Support MP3,WMA,AC3
Viewable Angle: 85/85/80/80 (H/V)
Brighness 1000:1
Random playback No
Playback & display order Follow the copied order & numberic or alphabetic order
Slideshow Effects Yes, transition effects changeable
Interval Timer (photo) Yes,Changeable
Music/Video repeat Mode Repeat all; Repeat Off; Repeat one
Timer Auto Power On/Off Yes
Key Playing Features 1.Plug and play/loop: Auto start and play.
2.Play & loop photo only.
3.Play & loop video only.
4.Slideshow (photo+music) and loop.
Calendar clock YES
Rotation 90/180/270/360
USB Port Yes 2.0
Remote Control Yes
Speaker 2 x 5W (Plays Stereo MP3)
Zoom In Yes
AC Adapter 100-240V (US/UK/AU/EU)
Language English,Chinese
Warranty 12 months by Manufacturer
Packing: 1.21.5 inch Digital Frame
3.A/C Adapter(110V~220V)
4.Remote Control
5.Stand and Screws 6.Anti-Theft Cover With Two Screws
Related files for download 1. Specification sheet; 2. The drawing; 3. Manual

Additional information

Weight 20 kg

Motion Detection, Standard
