22″- 75″ digital signage displays, advertising photo frame
22″- 75″ digital signage displays, advertising photo frame
$349.00 – $2,099.00
In stock
5.00 out of 5
$349.00 – $2,099.00
- Ultimate signage solution for displaying your content from USB.
- Integrating 22″ to 98″ Led screen and signage hardware together.
- Anti-glare toughened safety glass, ensures incredible image quality.
- Robust metal frame with brushed aluminum surround and lock.
- Automatic slideshow & power-timer, split-zone templates,
SKU: E50043
- Description
- Specification
- Reviews (3)
Description
FHD 22 – 75 inch advertising photo screen, digital signage displays
Free 32Gb SD memory card.
Gold & Silver color available.
Please visit “Specification” tab for more product date.
Special features:

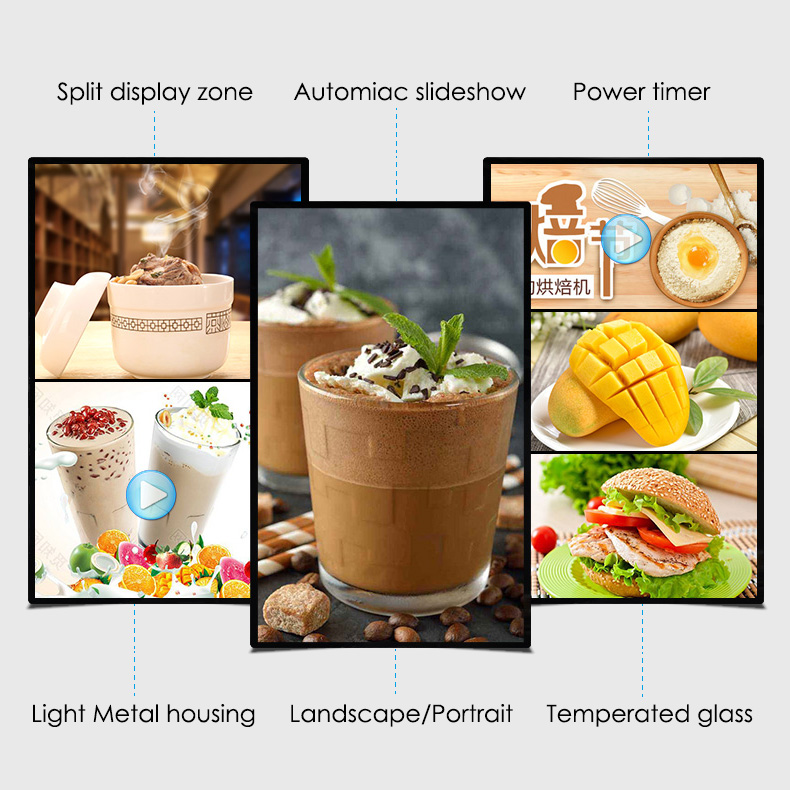

This indoor wall mountable digital signage screen monitor is designed to meet all your business or brand’s advertising needs. It features a FHD IPS panel to ensures incredible image quality and a powerful media signage player supporting split display zone, automatic on/off, and playback on schedule which allows you publish life-like images & videos and creative captions through USB at any time you want. It’s a perfect marketing tool for small medium-scale and large businesses / corporations. It’s also an idea large digital photo viewer in home.
- A wide range of large sizes from 22″ to 98″, it will naturally fit any space on your wall or table.
- Adopts LG’s / BOE 1080P Full-HD High-Performance-Grade LED panel with an extra layer of tempered glass on the top, specially designed for long-term extended reliable use in commercial advertising.
- Powered by a quad-core 1.5G processor, 1G ram and 8GB internal memory (3.4G usable,4.6G system files). You can insert a Fat32 formatted TF card as an alternative to internal storage.
- A large viewing angle of up to 178 degrees to give you sharp and optimal colors and detail in different viewing angles.
- It features a signage media player that supports a wide range of video and audio formats, including 1080P DAT, MPEG, Mpg, and AVI video @30P for videos.
- Photo & Video can be displayed in full screen or in their original aspect ratio. Slide effects & interval time are both adjustable.
- It supports “.mp3” background music.
- You can also add scrolling text at the top or bottom of the screen and change the color and speed of the captions.
- Auto-copy, update simply by inserting Fat32 formatted USB drive.
- Solid slim metal housing with aluminum brushed bezels and rounded corners. Security lock keeps the display safe.
- Support HDMI in as a monitor to show signal from your HDMI device.
- Random and sequential playback according to numerical order filename.
- Play all files in numerical order if the files were named in a sequence of numbers. For example: Name the files to:
001.jpg,
002.jpg,
003.mp4…, it will play them in numerical order. - 15 pre-built split-screen templates. Dividing the screen into 2/3 desired display zones with a single press on the remote control.
- It comes with a built-in power timer switch that allows you to set up 4 ON/OFF programs for every day or every Mon-Sun. The power timer feature makes the signage display quite convenient and easy to use.
- You can set up 4 digits password to prevent unauthorized access to the display menu.

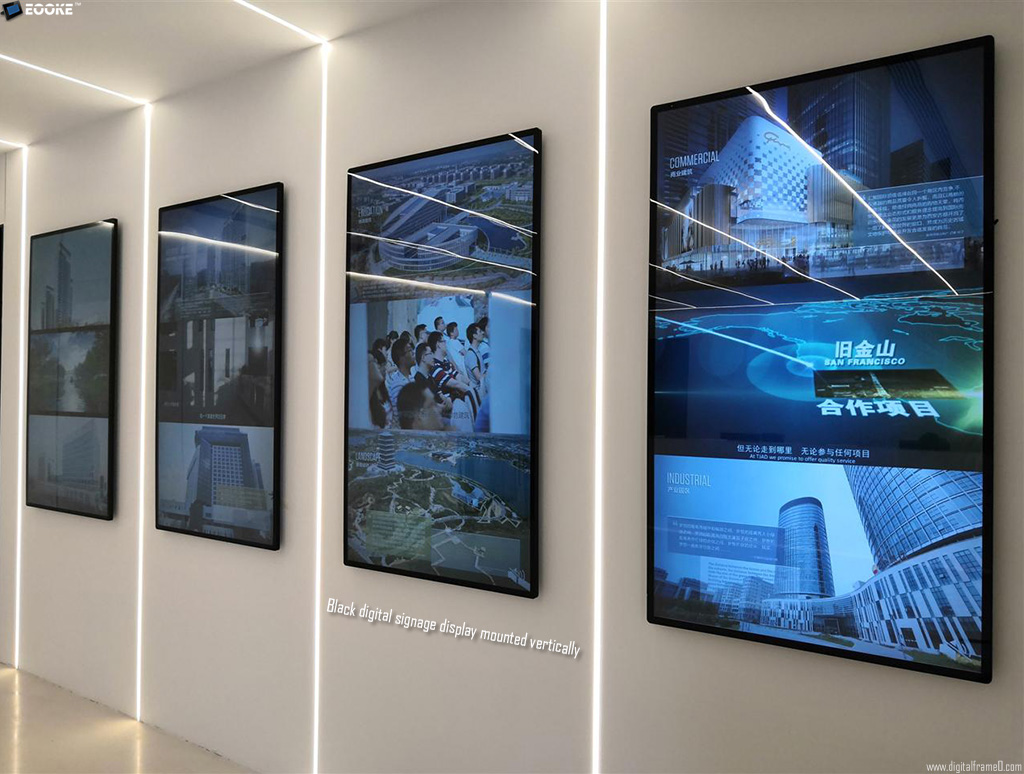

- You can adjust the orientation and turn the it into a vertical digital signage display by choosing +- 90 degrees in the menu. That’s giving you flexible viewing & mounting options.
How it works
- Create a “Sprogram” folder on the root of your USB drive.
- Copy media files to this folder.
- Insert in the USB slot of your Eooke LED signage screen to automatically copy the files in the internal memory and remove your USB drive when done.
- Your product showcase is on. Unplug the USB drive, .
What is difference between LED signage screen and big digital frame
Items | LED Signage Screen | Big Digital Frame |
Plug and Play | ||
Slideshow | ||
Video/Music | ||
HDMI In | ||
Shuffle Mode | No | |
Scrolling Text | No | |
Menu Rotation | No | |
Password Protection | No | |
Split Screen | No | |
USB Updating | No | |
Internal Memory | No | |
Security Door | Lock usb/hdmi | No |
Size Available | 19″ to 100″ | 19″ to 55″ |
Housing Material | Metal | Plastic |
Special Play Order | In numerical order | In copied order |
Power Timer | 4 sets per day/week | 1 sets per day |
Quick FAQ:
1. Can this digital signage frame do slideshow at home??
Sure, it can. Once USB inserted, it will copy media files onto its internal memory and then do slideshow or playback video once the copy is finished. Please choose the size that would fit your intended space and desired photo size.
Sure, it can. Once USB inserted, it will copy media files onto its internal memory and then do slideshow or playback video once the copy is finished. Please choose the size that would fit your intended space and desired photo size.
2. What kind of power plug it come with.
We have US/AU/UK/EU plugs, country-specific plugs will be sent with the order. If you have specific requirements, please leave the message at the check-out.
We have US/AU/UK/EU plugs, country-specific plugs will be sent with the order. If you have specific requirements, please leave the message at the check-out.
3. Does this screen have any dead pixel?
No, it doesn’t have any pixel as it need to pass our quality control and aging test before shipping out. You are assured of getting a brand new and high-quality digital screen, with not a single dead pixel present.
No, it doesn’t have any pixel as it need to pass our quality control and aging test before shipping out. You are assured of getting a brand new and high-quality digital screen, with not a single dead pixel present.
File for download.
File Supported:
Extension | Video Format | Coding Type | Resolution | Rate |
.Dat, .Mpg .MPEG | Mpg, MPEG | Mpeg1/Mpeg2 | 1920*[email protected] | 10Mbit/sec |
.ts, .trp, .tp, .m2ts | Mpeg2 -TS H264-TS |
MPEG2 ,H.264 | 1920*[email protected] | 10Mbit/sec |
.vob | MPEG2 -PS | MPEG2 | 1920*[email protected] | 10Mbit/sec |
.mp4 | AVI, MP4 | MPEG4 Divx3.11,DivX 4.12, Divx5.x,Divx6, 1.00, Xvid1.01,Xvid 1.02, Xvid1.03, Xvid1.10-beta1/2 H.264, Xvid |
1920*[email protected] | 10Mbit/sec |
.rm, .rm-vb | RM, RM-VB | Rm | 1920*[email protected] | 10Mbit/sec |
.mkv | MKV | H.264, MPEG1,2,4 | 1920*[email protected] | 10Mbit/sec |
.DivX, .AVI | AVI(1.0, 2.0), DMF0,1,2 |
MPEG2, MPEG4 Divx3.11,Divx4. Divx5, DivX 6, Xvid 1.00, Xvid1.01,Xvid 1.02, Xvid1.03, Xvid 1.10-beta1/2 H.264 |
1920*[email protected] | 10Mbit/sec |
.asf, .wmv | ASF (Revision 01.20.03) |
VC1 | 1920*[email protected] | 10Mbit/sec |
.ts | ts | AVS | 1920*[email protected] | 10Mbit/sec |
Motion JPEG | AVI, MOV | JPEG | 640×480 @ 30P | 10Mbit/sec |
Please note:
- As sizes 70″ / 75″ / 80″ / 86″ / 100″ exceed all major carriers weight and size limits, their shipping rates and transportation option may be different, please contact [email protected] to get detail if you want to order 70″ or bigger size.
- For bulk order, please feel free to contact us for the quotation.
You may be interested in:
- An advanced signage product: WIFI FHD & 4K digital signage display.
Signage Display Specification | |||||||||||
Size | 22 inch | 24 inch | 27 inch | 32 inch | 43 inch | 47 inch | 50 inch | 55 inch | 65 inch | 70 inch | 75 inch |
Screen size (cm) | 48×27 | 52×30 | 60×34 | 70×40 | 95×52 | 103×58 | 110×62 | 122×69 | 143×80 | 155×88 | 166×93 |
Screen size (inch) | 19″x11″ | 21″x12″ | 24″x13″ | 28″x16″ | 37″x21″ | 41″x23″ | 44″x25″ | 48″x27″ | 57″x32″ | 61″x35″ | 65″x37″ |
Signage size (cm) | 52x32x6 | 57x34x6 | 64x38x6 | 75x45x6 | 97x57x6 | 107x62x6 | 115x66x6 | 126x73x6 | 147x85x6 | 161x94x6 | 170x98x6 |
Signage size (inch) | 21x13x3 | 23x14x3 | 25x15x3 | 30x18x3 | 38x23x3 | 43x25x3 | 46x26x3 | 50x29x3 | 58x34x3 | 64x38x3 | 68x40x3 |
Net Weight | 6.5 KGs | 7.5 KGs | 8.3 KGs | 12 KGs | 20 KGs | 23 KGs | 25 KGs | 30 KGs | 37 KGs | 50 KGs | 65 KGs |
Wooden Case Packing | 20 KGs | 22 KGs | 25 KGs | 30 KGs | 40 KGs | 45 KGs | 50 KGs | 60 KGs | 70 KGs | 80 KGs | 90 KGs |
Consumption | 25 W | 25 W | 30 W | 40 W | 50 W | 60 W | 80 W | 110 W | 120 W | 240 W | 260 W |
Signage color | Silver & Gold | Black | White | ||||||||
Resolution | 1920*1080 | ||||||||||
Pixel Pitch | 0.248*0.744 (mm) | ||||||||||
Display colors | 10 bit, 1.07B | ||||||||||
Best viewing distance | over 2 m | ||||||||||
Aspect Ratio | 16:9 | ||||||||||
Contrast Ratio | 4000:1 | ||||||||||
Brightness | 450 nits (CD/㎡) | ||||||||||
Timer Function | YES | ||||||||||
Viewing Angle | 89/89/89/89 degree | ||||||||||
Response time | 5.5(GtoG) ms | ||||||||||
Memory Cards support | TF card | ||||||||||
USB Port | 2.0 x 2 | ||||||||||
HDMI | HDMI in | ||||||||||
Image Format | JPEG/JPG/PNG | ||||||||||
Video Formats | Dat, Mpg mpeg, ts, trp, tp, m2ts, vob,mp4, rm, rmvb, mkv, divx, avi, Motion JPEG, asf, wmv, ts, tp, trp, t2rs, divx [email protected] | ||||||||||
Audio Formats | MP3, Wmv | ||||||||||
File quantity | Less than 200 in a time | ||||||||||
Photo Playing order | Can be in numerical order (name the image to 001.jpg, 002.jpg, 003.jpg….. or playlist order | ||||||||||
Power timer | Automatic power on and power off on schedule. | ||||||||||
Rotation | 90/180/270 (Captions/time clock/Calendar rotatable) | ||||||||||
Interval time | 5s/7s/10s/15s/30s/60s/90s/120s/150s | ||||||||||
Remote | Yes | ||||||||||
Speaker | 10w x 2 | ||||||||||
Wall mount | Yes | ||||||||||
Input voltage | 100-250V (US/UK/AU/EU) | ||||||||||
Language | English, Chinese | ||||||||||
Warranty | 12 months by Manufacturer | ||||||||||
Contents of Package | 1.Advertising screen 2.Wall bracket (1) 3.Operations Manual 4.Remote Control |
